Printy Panels compatible with Zack Freedman's Gridfinity system.

Printy Panels Video Printy Panels Updates Video

Options

• Basic Panel - Uses minimal filament
• Weighted Panel - Squeezes in a few more bin ports with a thicker base
• Magnetic Panel - Includes holes for 6x2mm magnets or M3 bolts

Printing

• All parts can be printed without supports.
• Add a brim if curling is an issue.
• Use large 0.3mm layer heights for quicker prints that are still strong.
• Use PETG, ABS, or strong formulations of PLA. Silk, woodfill, and matte PLAs are NOT recommended.

Loose Connectors?

If your connections are too loose, try one of the following:

• Add a slight fuzzy skin (0.1mm variance) to the connectors. This will essentially make the connectors a little thicker without altering their overall dimensions.
• Increase your extrusion multiplier so that the connector walls are slightly thicker.
• Increase your print temperature slightly - this often has a similar result to increasing the extrusion multiplier.

Additional Credit

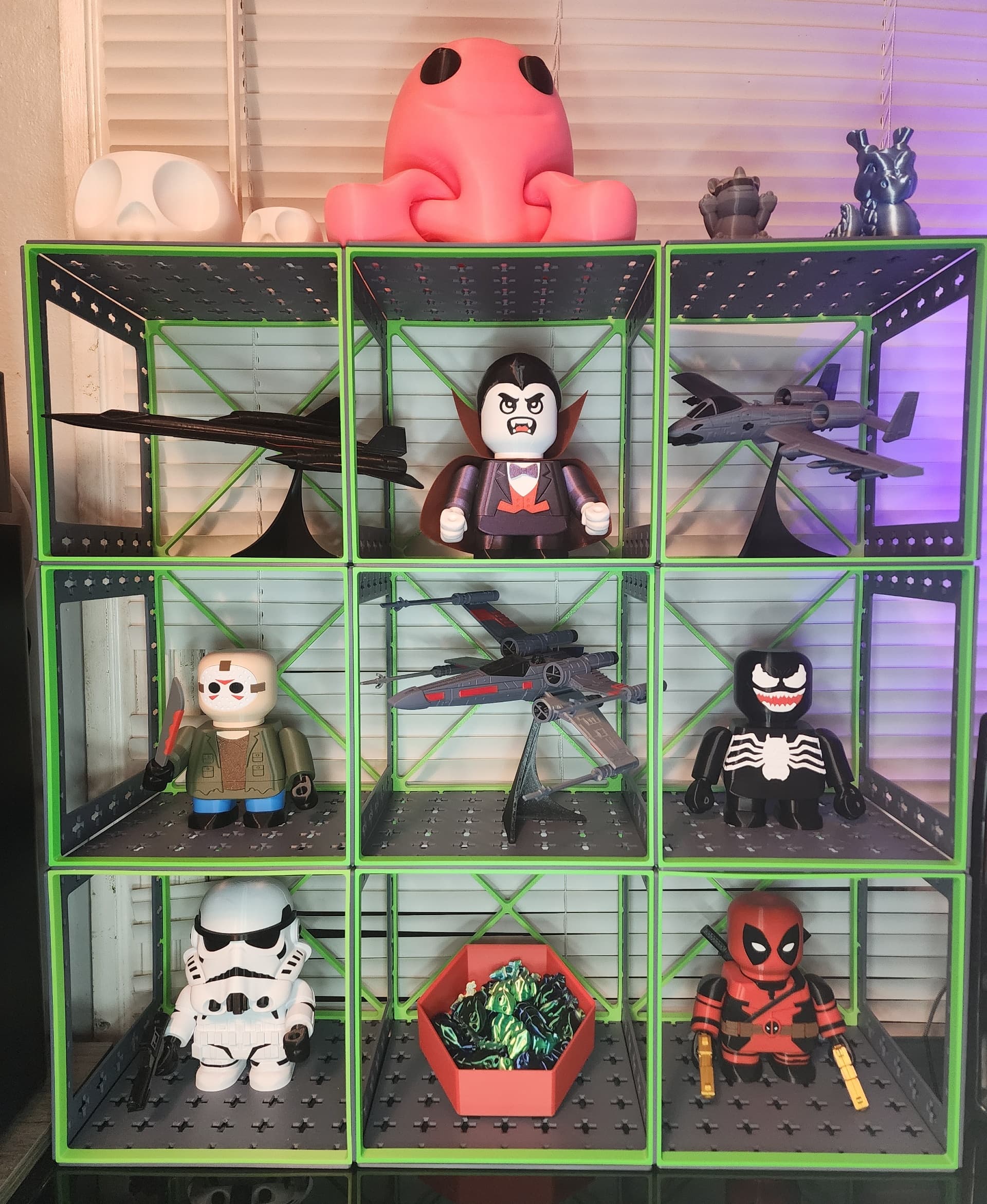

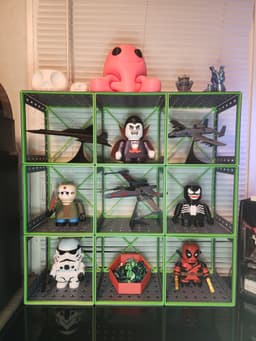

Photo includes Gridfinity Hex Bins bins designed by K2 Kevin.

Can I sell copies of this?

Yes! This project was shared under the Creative Commons - Attribution license.

This license allows selling copies, but you must provide proper attribution, as detailed in the license itself.

Please note that any other projects linked here (remixes or related projects) may have a different license. Please respect those licenses.

This license applies only to the model files (STL, 3MF, STEP, F3D) included in this project. It does not apply to photos, videos, my logo, or other supplemental graphics attached to or displayed with this project.

Recommended Attribution Text

"Printy Panels" (https://3dprinty.xyz/project/114) is designed by 3D Printy (https://3dprinty.xyz) and shared under a Creative Commons Attribution (CC BY 4.0) license (https://creativecommons.org/licenses/by/4.0/).
